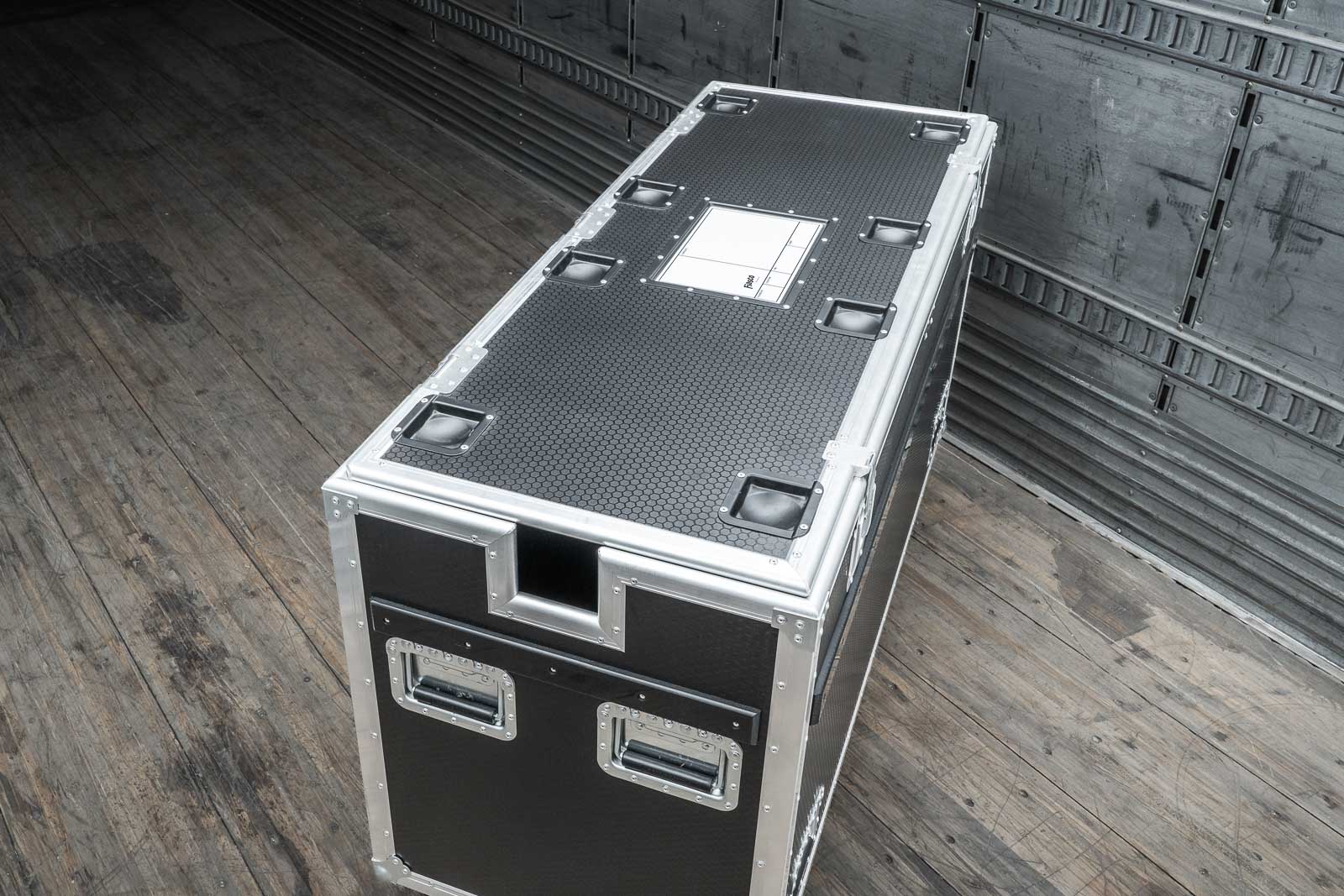

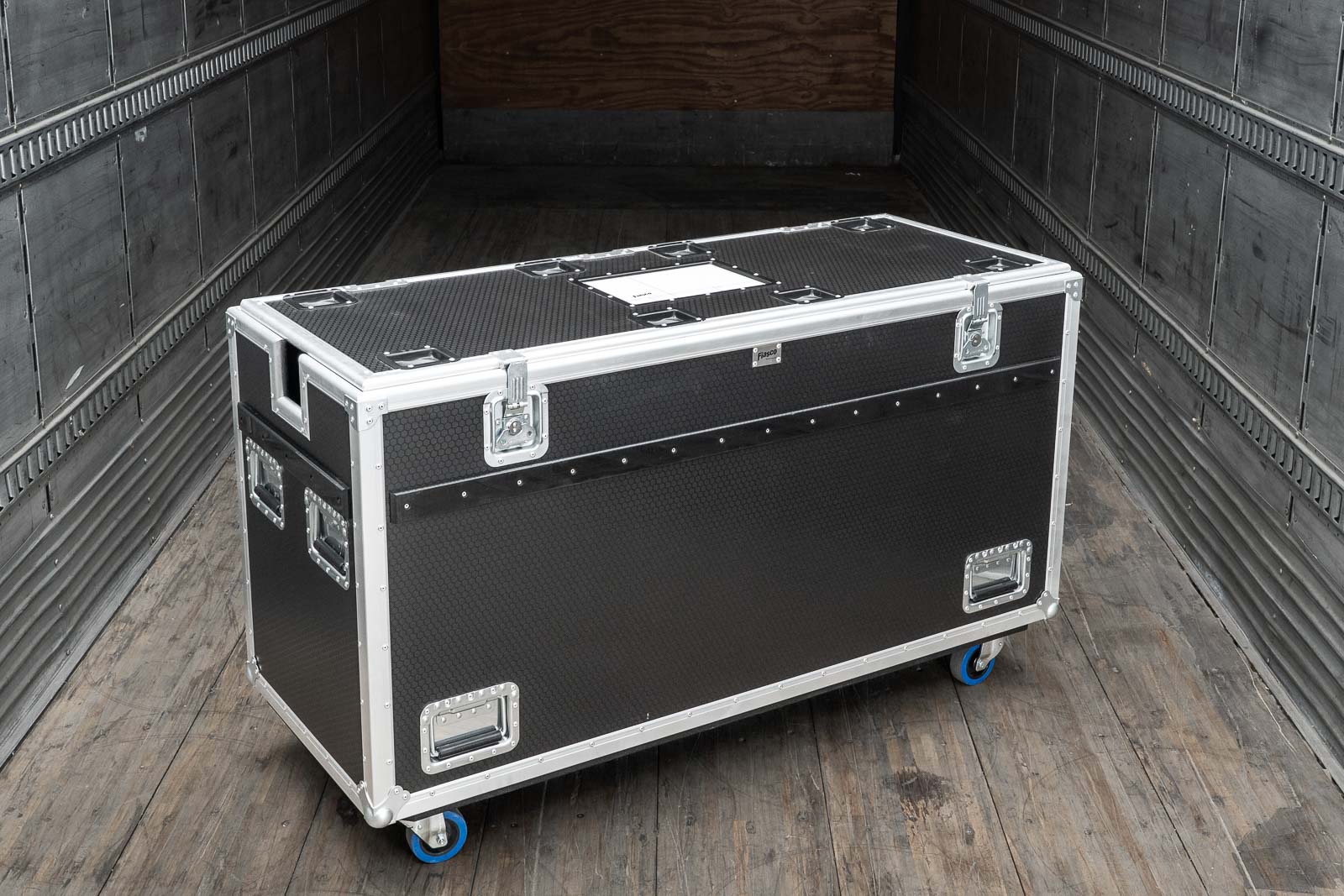

24 x 60 Tall Cadillac Case

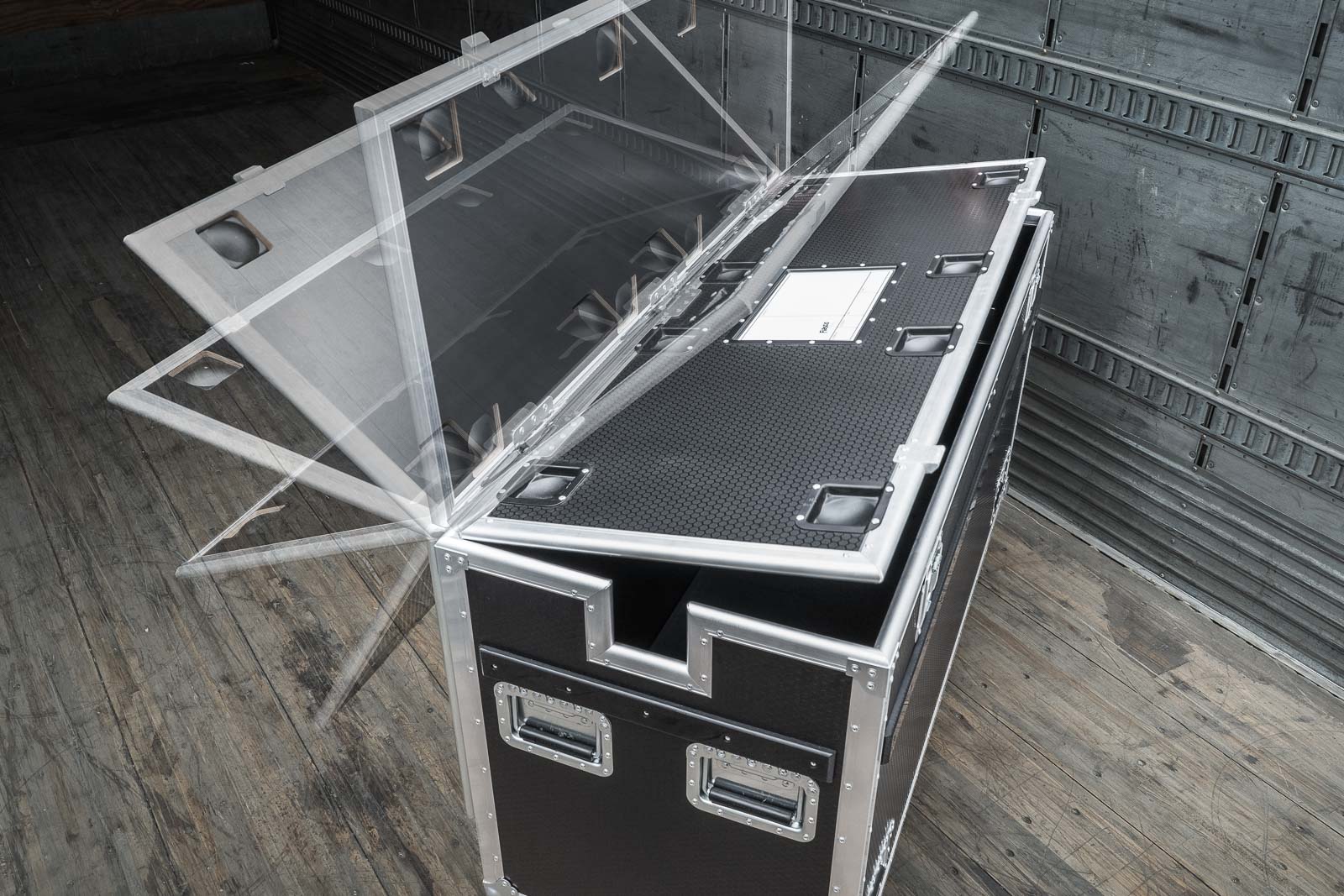

24 x 60 Tall Cadillac Case Lid Flipping

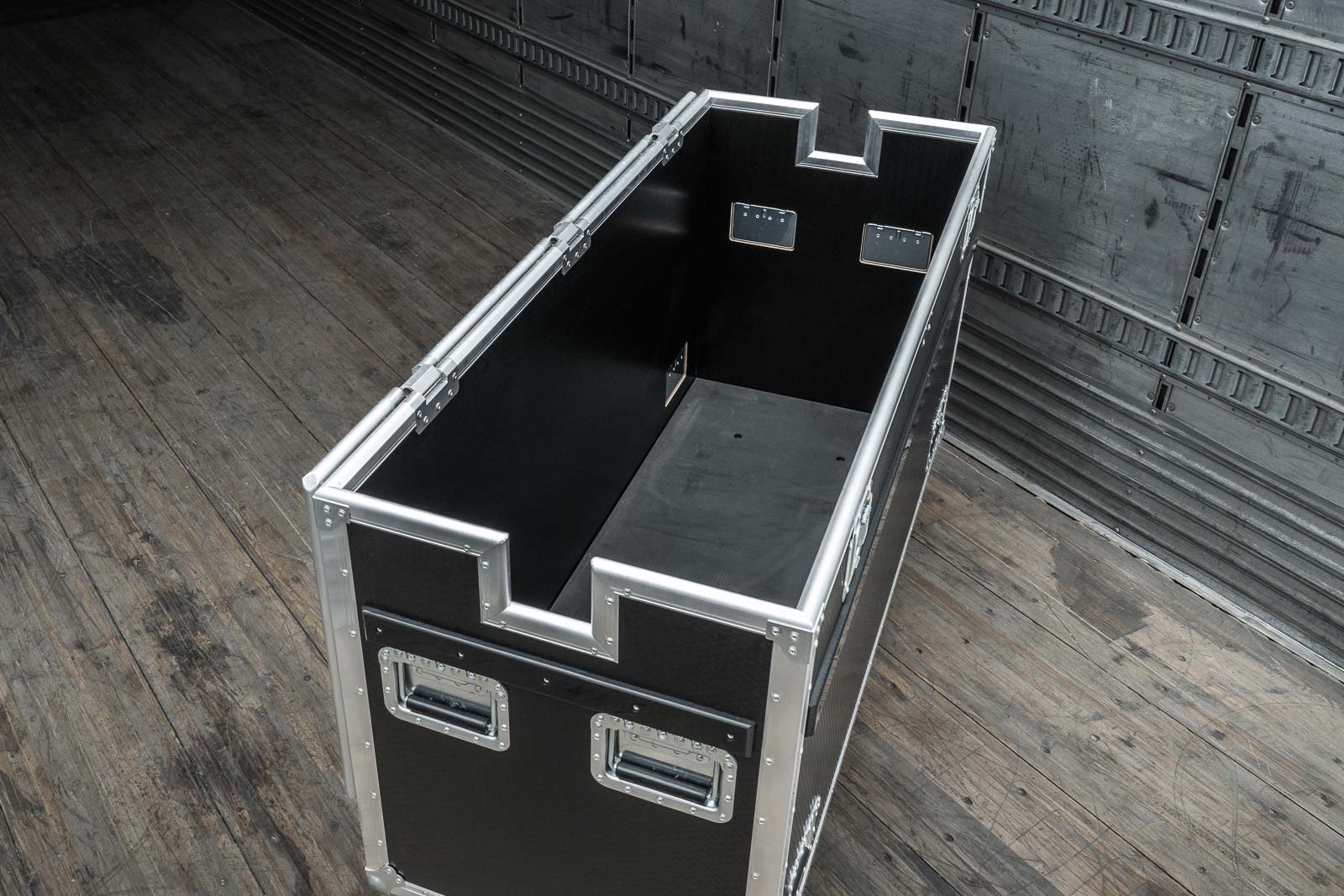

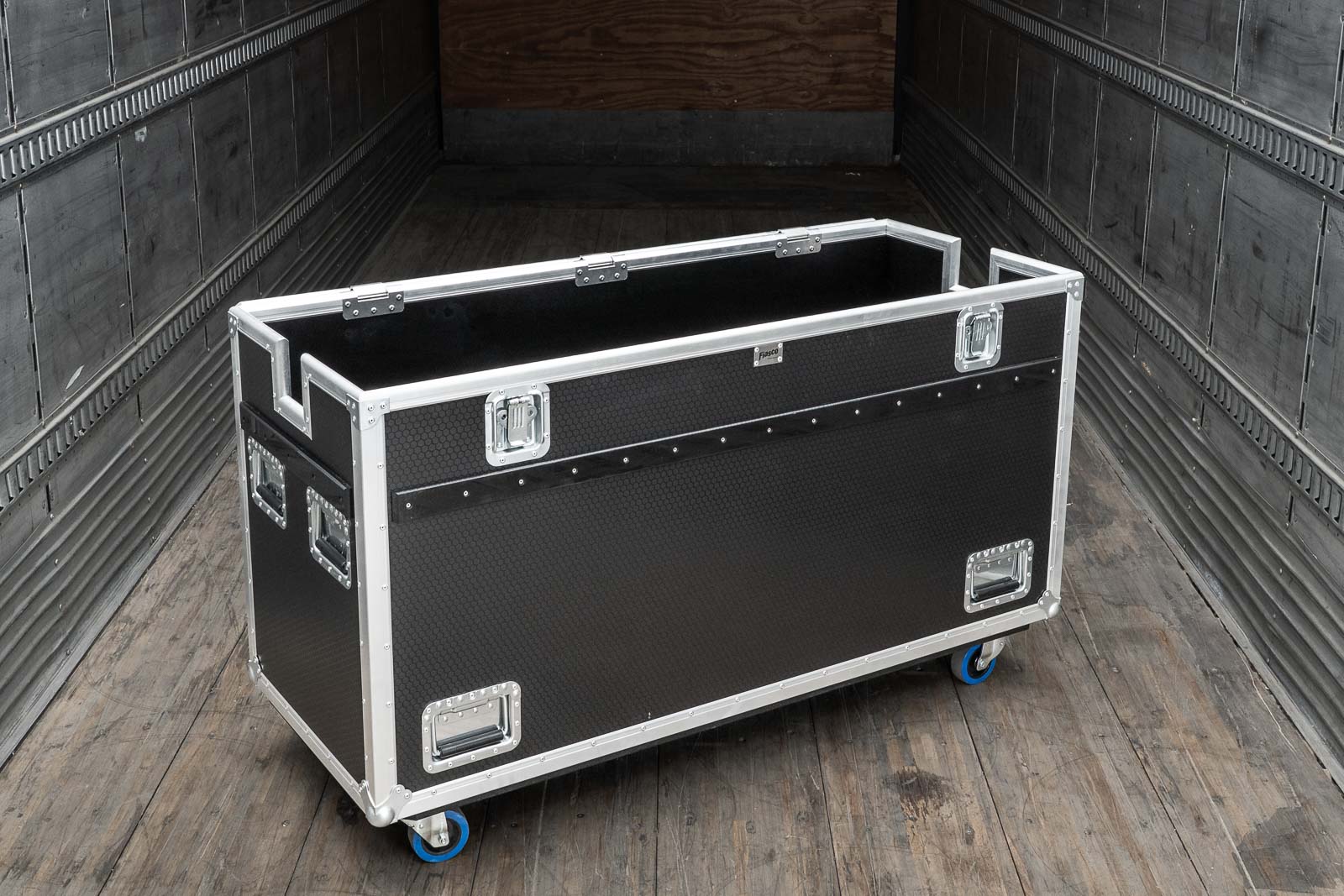

24 x 60 Tall Cadillac Case Lid Open
Close Up Of 24 x 60 Tall Cadillac Case Hinge
24 x 60 Tall Cadillac Road Case Interior
24 x 60 Tall Cadillac Road Cases Stacked

24 x 60 Tall Cadillac Case

A Fiasco exclusive!

We designed this hinge and plug lid system to solve the problems that every 270-degree lid case couldn't. The result is a Fiasco-patented solution that's both strong and smart!

Other common hinges found on cadillac cases have two main issues - either the hinge is too light, which causes it to break, or it is overly large, causing it to break everything else it goes near.

Flip the lid and you get clean lines and an open bin, making it easy to pull out or feed back your biggest cable feeds or chains. Close the lid, and the plug lid design allows you to stack hundreds of pounds on top.

Our flip-over hinge, which is not only heavy-duty but also recessed into the case's exterior, eliminates snagging and the loss of space associated with conventional hinges, which otherwise jut out from traditional cases when closed.

This recessed design allows the lid to flip back fully, giving you access from all angles and making it functional and safe to wheel around when open.

Another distinctive feature is the rounded extrusion, which creates smooth edges that are gentle on cables, drapes, and hands.

All of these innovations come without compromising the case’s strength. Each Cadillac Case is constructed using double-thick birch ply sidings to ensure this.


A perfect fit in any transport, 24 x 60 Cadillacs are optimized for 96" & 90" Truck Packology:

  • Pack two end-to-end in 96" box trucks and semi-trailers
  • Pack three side-by-side in shipping containers and 90" box-trucks



Sidings Black resin impregnated ¾" Birch Ply
Wheel-board ⅝" Birch Ply with low lifting cut-outs
Extrusions 2.5mm proprietary 6061-T6 alloy
Hardware Penn Elcom zinc plated fittings
Other Proprietary hinge
Wheels Penn Elcom 550LB 4" blue auto castors
Lining Smooth resin impregnated Birch Ply
Internal Capacity 20.1cu.ft [568L]
Shipping Volume 30cu.ft [0.85cbm]
Weight 150lb [63kg]
Case Dimensions
(W x D x H)
24 x 60 x 36" [610 x 1524 x 914mm]


We ship throughout the continental United States via various major freight services.

If your order is small like a Polyproof Case then we will typically send this via UPS Ground.

If your order is larger then it will come via LCL trucking network within 1-10 days. Shipping costs are additional to our website prices. We will confirm shipping costs on your final invoice.
