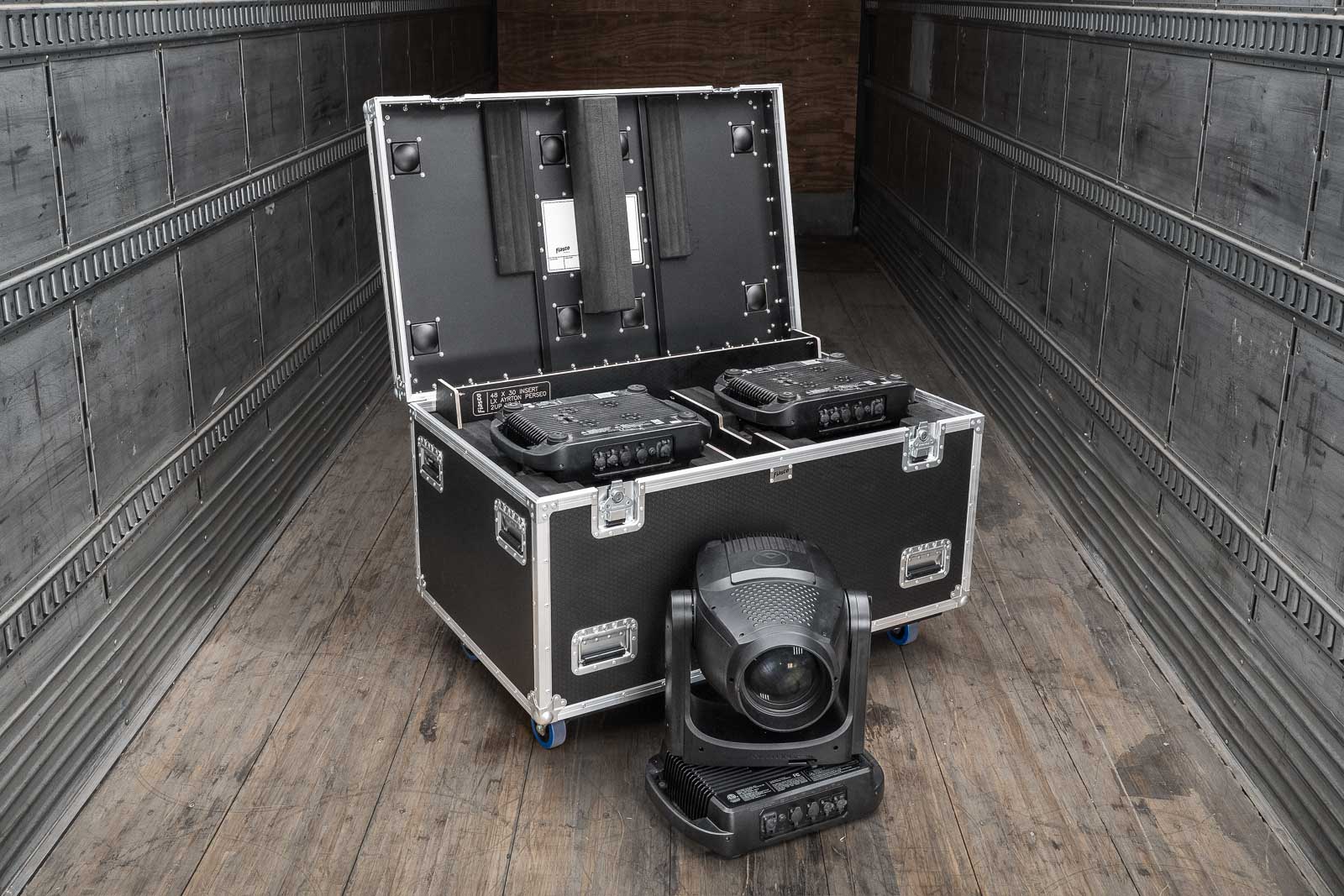

This case is designed to securely house two Ayrton Perseo fixtures.

This case consists of a 48 x 30 case combined with a custom insert and EVA foam hold-down for the lid.

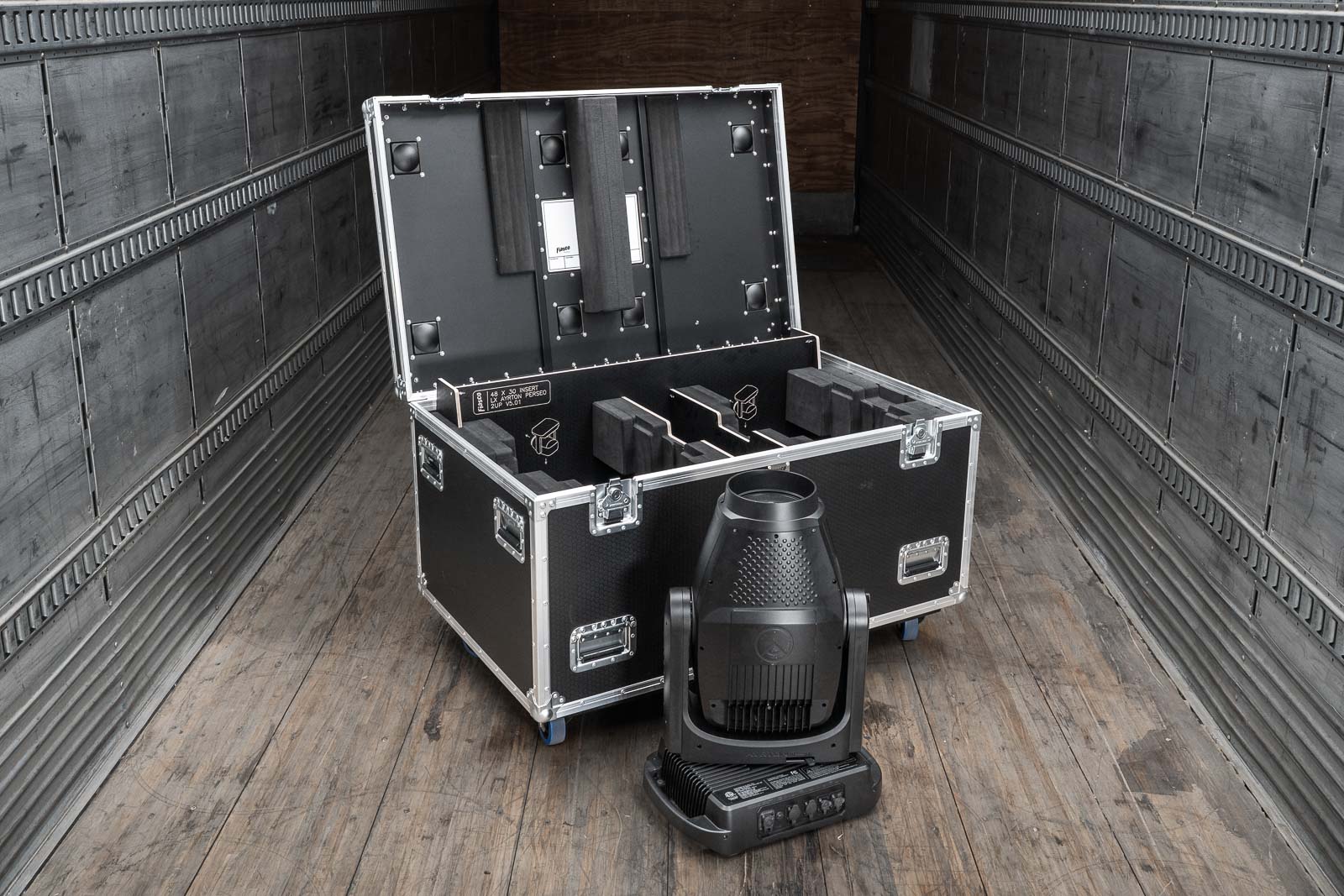

In addition, the insert features a large fully isolated pocket for clamps, cables and accessories.

Inserts are custom-made by our skilled Los Angeles, CA team and built from the same quality birch ply and EVA foam as the rest of our trusted road cases.

This case is designed to ensure your fixtures remain safe and sound throughout transportation and offers quick and hassle-free access during setup and pack down.

If you don't see a case and insert listed for your specific Ayrton fixtures, please reach out - we can design one.

Like all cases in the Fiasco family, the Ayrton Perseo 2UP Insert in 48 x 30 Case is designed to pack & stack perfectly with all other Fiasco Cases as part of our 96" & 90" Truck Packology:

  • Pack two side-by-side in 96" box trucks and semi-trailers
  • Pack three end-to-end in shipping containers and 90" box trucks

DOWNLOAD PRODUCT SPEC SHEET

CONTACT US FOR A QUOTE

Sidings Black resin impregnated ⅜" Birch Ply
Wheel-board ⅝" Birch Ply with low lifting cut-outs
Extrusions 2mm proprietary 6061-T6 alloy
Hardware Penn Elcom zinc plated fittings
Wheels Penn Elcom 550LB 4" blue auto castors
Lining Durable closed cell foam
Internal Capacity 16.7cu.ft [472L]
Shipping Volume 25cu.ft [0.71cbm]
Weight 135lb [61.2kg]
Case Dimensions
(W x D x H)		 48 x 30 x 30" [1220 x 762 x 762mm]



We ship throughout the continental United States via various major freight services.

If your order is small like a Polyproof Case then we will typically send this via UPS Ground.

If your order is larger then it will come via LCL trucking network within 1-10 days. Shipping costs are additional to our website prices. We will confirm shipping costs on your final invoice.
